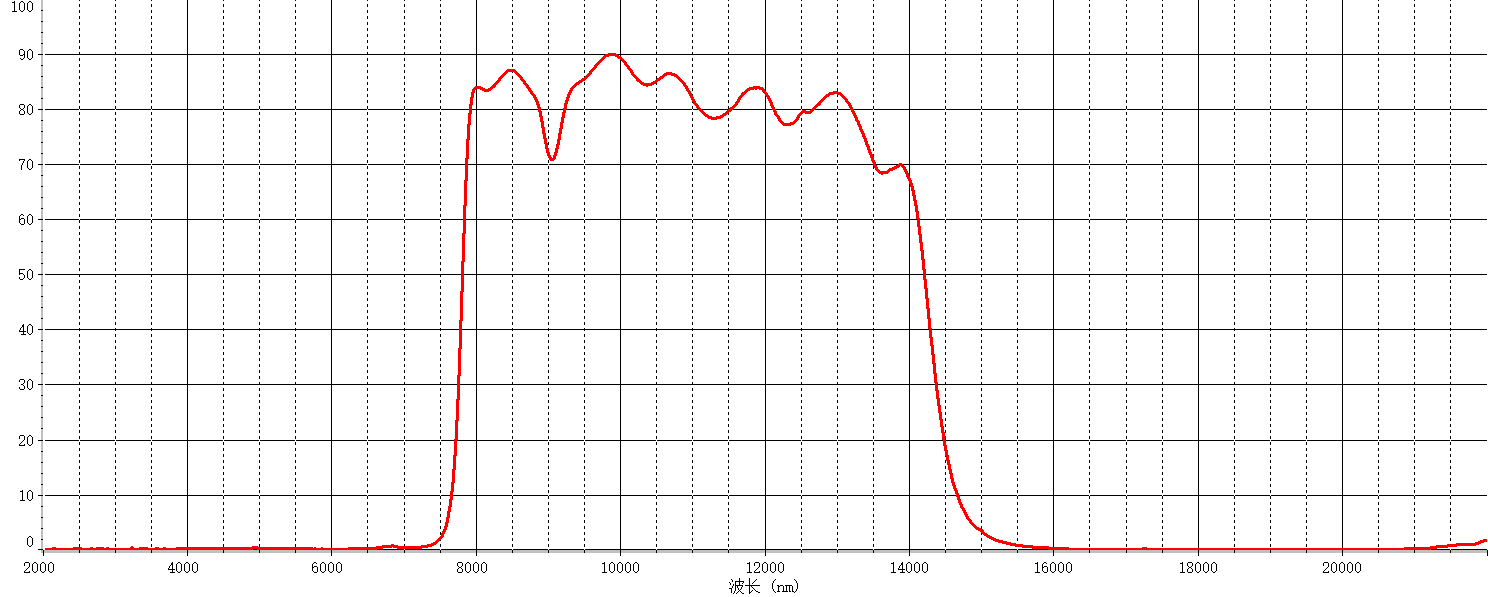

Center wavelength: 8-14μm
Transmittance:>75%
Cut-off band except passband: 1-20um Tave<1%
Substrate: Silicon
Diameter: 150.00mm±0.50mm
Thickness: 0.62mm ± 0.05mm
(Base 、diameter、 thickness can be customized）
Infrared thermometer
Infrared thermography
Datasheet
| PROD | Cut-off wavelength | Transmittance | Basis | Cut-off depth | Diameter | Thick | Application | |
| Range | Tave | Tave | ||||||
| 带通8000-14000nm | 1 -20um | 8-14μm | T>75% | silicon | Tave<1% | 150±0.5mm | 0.62±0.05mm | Infrared thermometer Infrared thermography |
